Manufacturer and Exporter of Clean Room Equipments

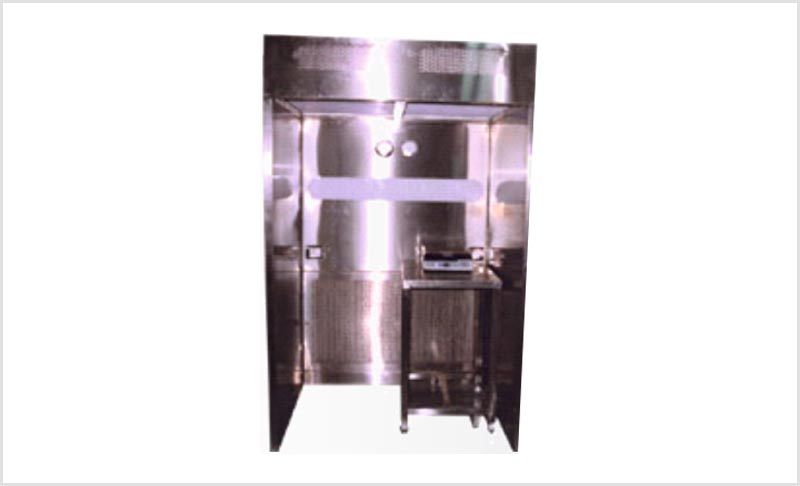

SUPER FLOW Reverse Flow Station combines several of our most advanced products in a state of the art work station that removes particulate air-borne contamination.
The backbone of the system is a direct drive, Electric motor that draws air through a pre filter.These filters remove 90% of all particles as a small as 10 microns from a large - volume air system. An microvee filter removes 99% of all particles as small as 5 micron from a large volume of air stream. An HEPA filter, rated 99.997% efficiency with 0.3 micron particles is available at the other end from which clean air is forced to the work surface.
| SR NO. | ITEAM | DESCRIPTION |
| 01 | MOC | SS304/SS316 |
| 02 | PRE FILTER EFFICIENCY | SUPER FLOW MAKE EU 5 RATING 90% DOWN TO 10 MICRON |
| 03 | INTERMEDIATES EFFICIENCY | SUPER FLOW MAKING EU 7 RATING 99% DOWN TO 5 MICRON |
| 04 | FINAL SUPPLY FILTER EFFICIENCY | SUPER FLOW MAKE MINIPLEAT HEPA FILTER EU 13 RATINGS 99.997% DOWN TO 0.3 MICRON. |
| 05 | EXHAUST FILTER EFFICIENCY | SUPER FLOW MAKE MINIPLEAT HEPA FILTER EU 13 RATINGS 99.997% DOWN TO 0.3 MICRON. |
| 06 | CLASS | ISO 5 (AS PER ISO 14644-1) |
| 07 | AIR FLOW RATE (VELOCITY) | 90+20FPM |
| 08 | NOISE LEVEL | LESS THAN 70 DP |
| 09 | VIBRATION | MINIMUM |
| 10 | INSTRUMENTATION PRESSURE GUAGE |
MAKE DWYER, USA |
| 11 | MOTOR BLOWER ASSEMBLY | STATICATICALLY & DYNAMICALLY BALANCED MOTOR BLOWER |
| 12 | OTHER DETAILS WHITE LIGHT EXTRA SWITCH FOR WEIGHING SCALE OTHER SWITCHES SIDE PANELS GRILLS 16 AMP SOCKET |
LED LIGHT. ON/OFF SWITCHES FOR MOTOR UNIT BLOWER & LIGHTS DOUBLE SKINNED THERMOCAL INSULATED SIDE PANEL SS PERFORATED GRILL FOR PRE FILTER & EXHAUST HEPA |
